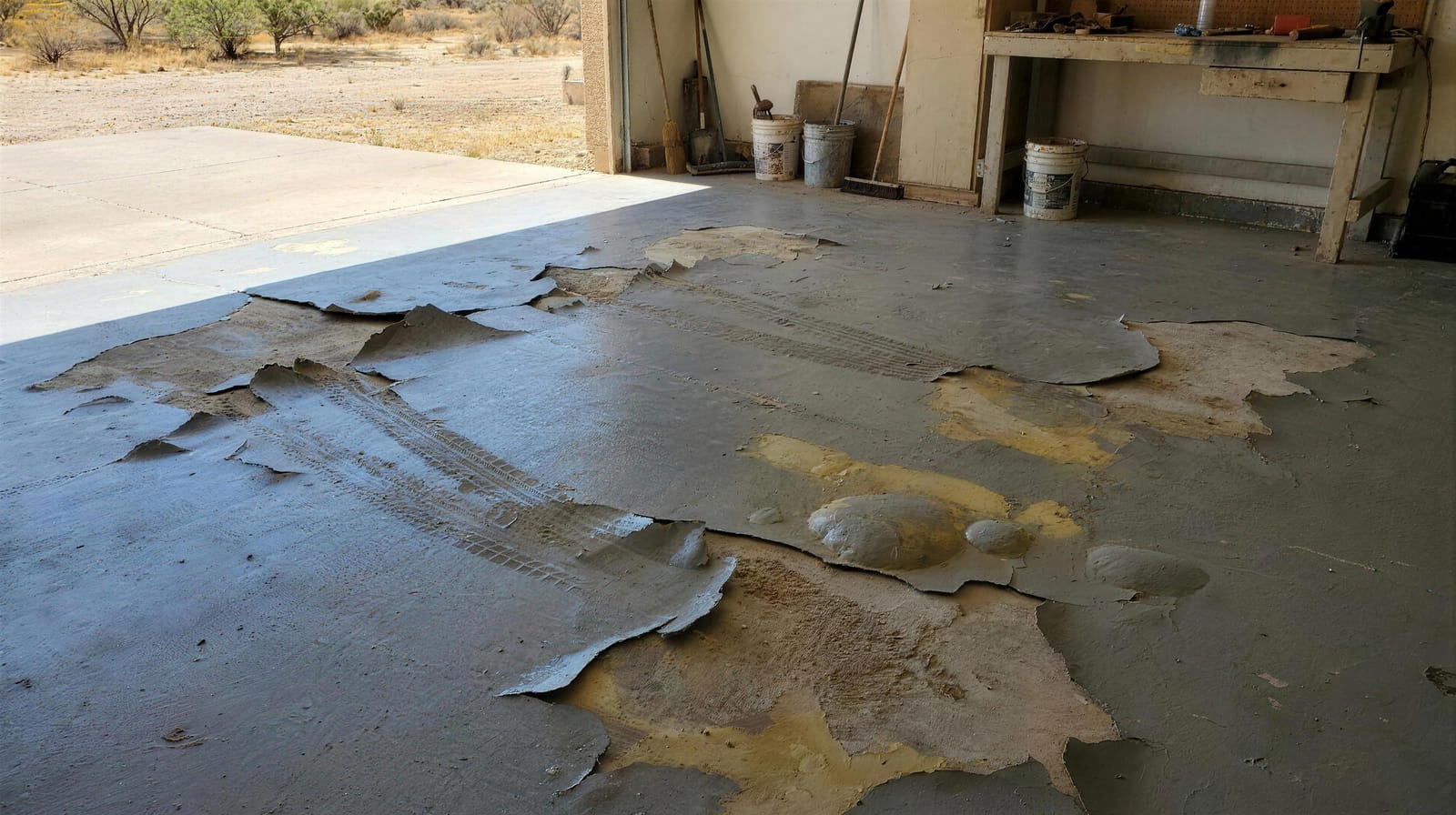

Why epoxy floors fail in Arizona

Search "epoxy garage floor peeling" and most of the advice assumes a generic climate. Arizona is not a generic climate. A slab here routinely surfaces past 140°F in direct summer sun, swings through a wide seasonal temperature range, and sits under some of the most intense UV exposure in the country. Every failure mode below is a direct, mechanical consequence of that environment acting on a coating chemistry that was not built for it.

Hot-tire pickup

Hot-tire pickup is what happens when a warm tire — heated by driving, then parked on a sun-exposed coated floor — softens the coating enough to grip it, and lifts or wrinkles the surface as the tire cools and contracts. It shows up as small round or crescent-shaped puckers under where the tires sit, usually within the coating's first one to two summers. Standard epoxy resin softens at a lower temperature threshold than a polyaspartic or polyurea system, which is why this specific failure is disproportionately an epoxy problem in hot climates. A tire that rolled in off a 160°F driveway is functionally a heat gun parked on the coating for as long as the car sits there.

UV chalking and yellowing

Standard epoxy resin is amine-cured and chemically aromatic, and aromatic resins absorb UV energy in a way that breaks down the polymer at the surface over time. That breakdown shows up as two visible symptoms: yellowing (a color shift, especially noticeable on clear topcoats and light colors) and chalking (a dusty, faded surface film that comes off on your hand if you wipe it). Both are cosmetic at first and structural later — a chalking topcoat is a topcoat that is actively eroding, and it stops protecting the flake and base coat underneath as effectively once it starts.

Moisture vapor drive

Nearly every residential slab in the Valley is a slab-on-grade, poured directly on compacted soil rather than over a basement or crawlspace. Moisture in that soil is constantly trying to migrate upward through the concrete's pore structure — a process called vapor drive — and it intensifies with landscape irrigation near the foundation and during monsoon season, when the ground saturates fast. A coating installed without checking that vapor rate first can end up trapping moisture between the slab and the coating film. That trapped moisture has to go somewhere, and "somewhere" is usually a blister, a cloudy patch, or full delamination working outward from a low spot in the floor.

This failure mode is not unique to epoxy — polyaspartic systems installed over an unmitigated wet slab can fail the same way. The reason it shows up so often in "why did my epoxy floor fail" searches is that budget epoxy kits and quick-turnaround installs are the ones most likely to skip a moisture test in the first place.

Thermal cycling

Concrete and coating resin expand and contract at different rates as temperature changes, and Arizona slabs move through an unusually wide range — cold winter mornings in the 40s, summer surface temperatures well above 140°F. Standard epoxy is a relatively rigid film once cured, with limited ability to flex as the slab beneath it expands and contracts through that swing, especially at control joints and slab edges where movement concentrates. Repeated cycling works those rigid, poorly bonded areas loose over time, which is a slower failure than hot-tire pickup but shows up as cracking and edge-lifting in the same coatings within a few years.

Poor prep

Every failure mode above gets worse, faster, on a poorly prepped slab. Acid etching — spraying a mild acid solution and rinsing, instead of mechanically grinding the surface — is a common shortcut in budget installs because it is fast and requires no equipment beyond a sprayer. It does not open the concrete's pore structure the way diamond grinding does, which means a weaker mechanical bond from the start. A coating with a weak bond fails at lower stress than one properly profiled, so hot-tire pickup, moisture blistering and thermal cracking all show up sooner and more severely on an etched slab than a ground one.

DIY water-based kits

Most big-box DIY epoxy kits are water-based, single- or two-coat systems designed for ease of application by a homeowner with no spray equipment. Water-based epoxy is inherently a thinner, softer film than a professional-grade solvent-based or 100%-solids epoxy, and box kits typically specify acid etching, not grinding, as the prep step. That combination — a thin, soft resin over a lightly etched slab — is close to the worst-case setup for an Arizona garage: minimal UV resistance, low heat tolerance, and a weak bond, all in one product. See DIY kits vs professional coatings for a full breakdown of the differences in equipment and material.

What actually survives here

A floor that holds up in Arizona needs four things working together: a UV-stable resin (aliphatic polyurea/polyaspartic rather than standard aromatic epoxy), a flexible film that moves with the slab through thermal cycling, a mechanically ground and profiled surface for a real bond, and a moisture test — with mitigation if the reading calls for it — before any coating goes down. Skip any one of those four and the other three are working against a weak point that will eventually fail. Get all four right and the failure modes on this page become edge cases instead of expectations. See polyaspartic vs epoxy for how the two systems compare directly, or concrete repair & prep for how we handle grinding and moisture mitigation before a coat goes down.
